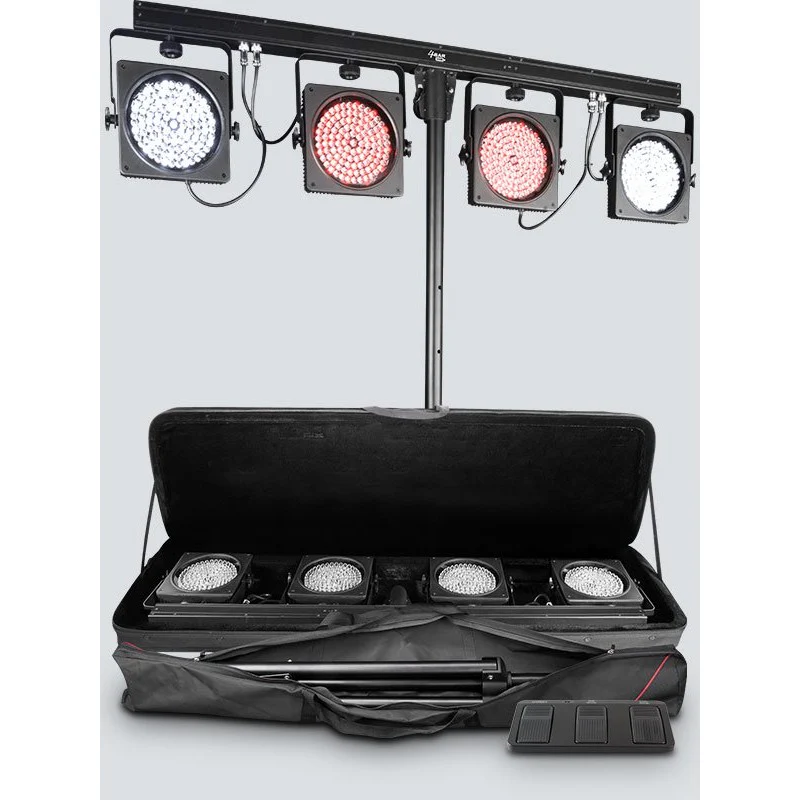

4Bar USB is a complete wash lighting solution designed for mobile entertainers. The ultra-convenience of the included tripod, wireless footswitch, and carry bags allow you to set up and tear down in minutes. But the ease and versatility of the 4Bar USB go to higher levels with the addition of D-Fi USB compatibility for wireless master/slave and DMX control. Achieve total room or stage coverage with 4Bar USB’s four individually adjustable heads–create larger, synchronized light shows with other 4BAR fixtures in master/slave mode. Generate shows with easy-to-access, built-in, automated programs, or easily control static colors and automated programs with the optional IRC-6 remote.

Highlights

Complete wash lighting solution designed for mobile entertainers

Achieve total room or stage coverage with 4 individually adjustable heads

D-Fi USB compatibility for wireless master/slave or DMX control

Easily set-up and tear down in minutes using the included tripod, wireless footswitch and carry bags

Increase mounting options by safely mounting to truss using the built-in bolts

Create large, coordinated light shows with other 4BAR fixtures in master/slave mode

Sound-activated programs dance to the beat of the music

Easily control static colors and automated programs with the optional IRC-6 remote

Generate a synchronized show in master/slave mode with easy-to-access, built-in automated programs

Specifications

DMX Channels: 3 or 15
DMX Connectors: 3-pin XLR
Light Source: 432 LEDs (144 red, 144 green, 144 blue) 0.25 W, (20 mA), 100,000 hours life expectancy
Strobe Rate: 0 to 19.9 Hz
PWM Frequency: 1.31kHz
Beam Angle: 17°
Field Angle: 24°
Fits Tripod Size: 1.37 in (35 mm)
Illuminance: 786 lux @ 2 m (per pod)
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power and Current: 29 W, 0.4 A @ 120 V, 60 Hz
27 W, 0.2 A @ 230 V, 50 Hz
Weight: 11 lb (5.0 kg)
1.2 lb (0.6 kg)
Size: 43.3 x 2 x 10.5 in (1,100 x 50 x 267 mm)
(Controller): 12.4 x 5.2 x 1.5 in (315 x 132 x 38 mm)
Approvals: CE
Optional Controllers: IRC-6, D-Fi USB
Stand Height: 7 ft 4 in (2.2 m)

What's Included

4Bar USB
Power cord
Carrying bag
Tripod
Footswitch
Hanging bracket

Lighting

Chauvet - Obey 10

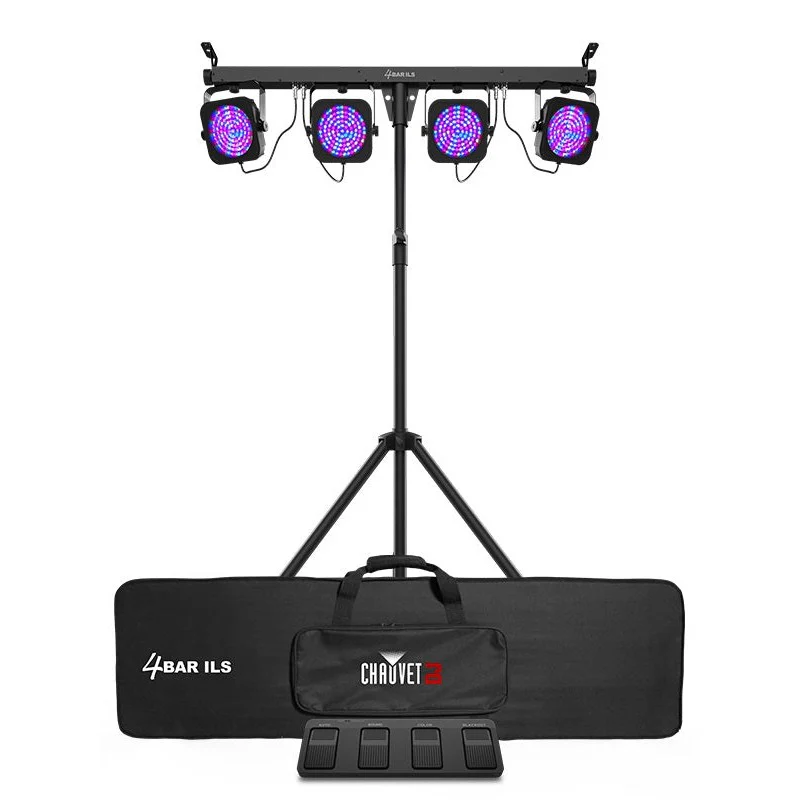

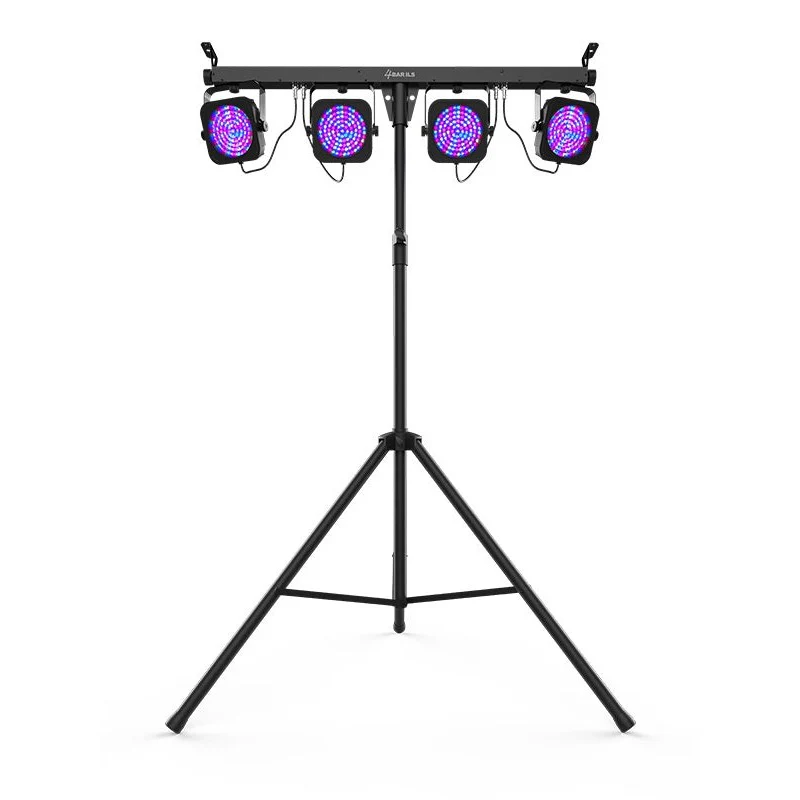

Chauvet - 4BAR ILS Wash Lighting

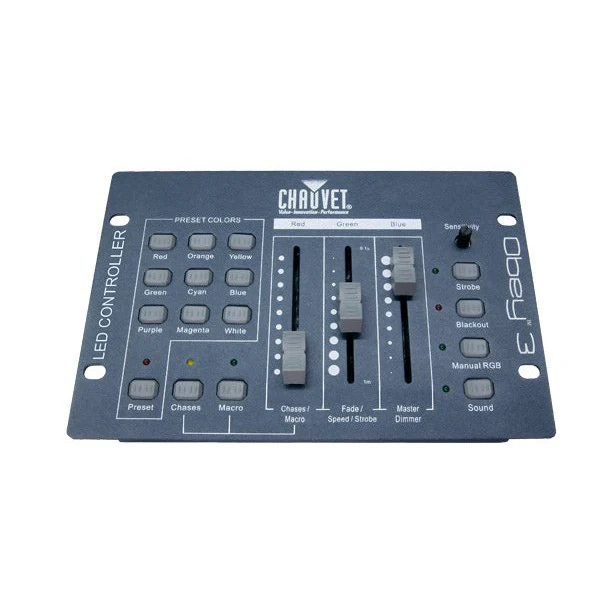

Chauvet - DMX Controller Obey 3

Chauvet - Derby X

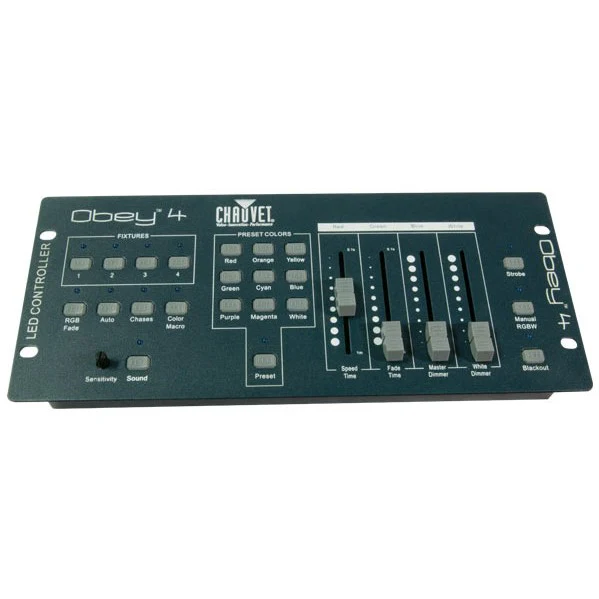

Chauvet - Obey4

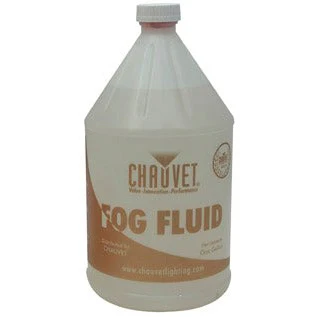

Chauvet - Fogger Juice

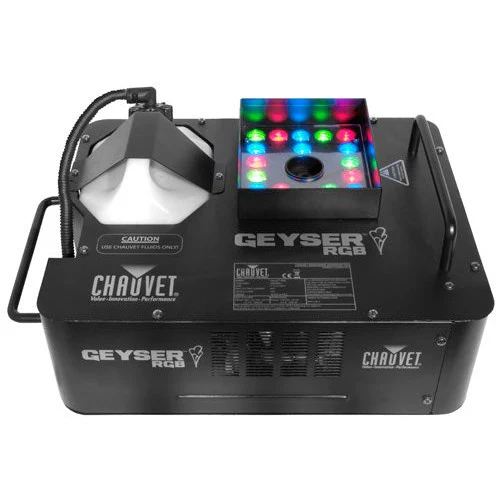

Chauvet - Geyser RGB
